Recurrent Neural Networks

Discover recurrent neural networks, a type of model that performs extremely well on temporal data, and several of its variants, including LSTMs, GRUs and Bidirectional RNNs,

Learning Objectives

Define notation for building sequence models
Describe the architecture of a basic RNN
Identify the main components of an LSTM
Implement backpropagation through time for a basic RNN and an LSTM
Give examples of several types of RNN
Build a character-level text generation model using an RNN
Store text data for processing using an RNN
Sample novel sequences in an RNN
Explain the vanishing/exploding gradient problem in RNNs
Apply gradient clipping as a solution for exploding gradients
Describe the architecture of a GRU
Use a bidirectional RNN to take information from two points of a sequence
Stack multiple RNNs on top of each other to create a deep RNN
Use the flexible Functional API to create complex models
Generate your own jazz music with deep learning
Apply an LSTM to a music generation task

Table of contents

Recurrent Neural Networks

Recurrent Neural Networks

Why Sequence Models?

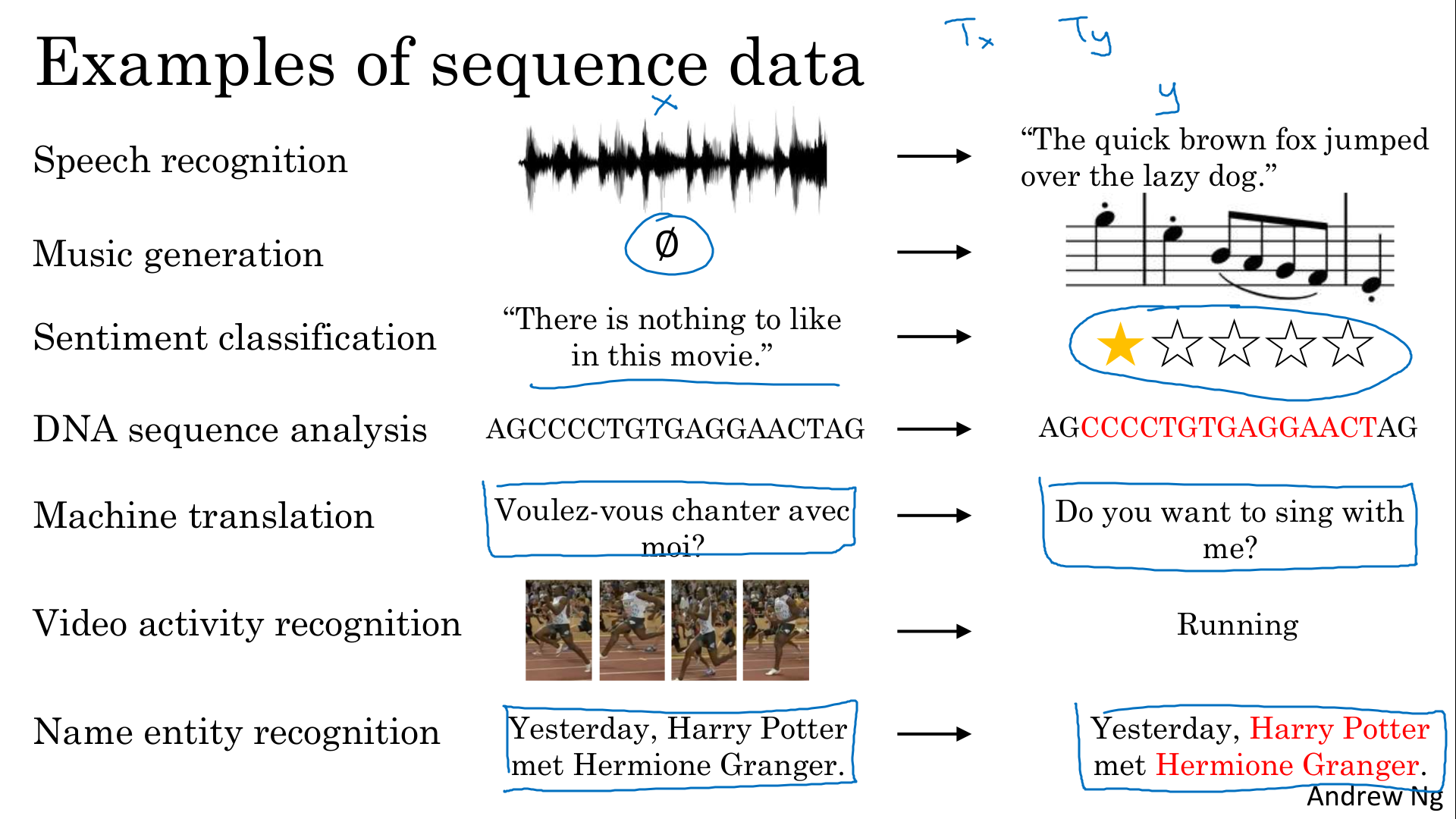

Examples of sequence data

Example	Type	Input
Speech recognition	wave sequence	text sequence
Music generation	nothing or an integer with the type of music	wave sequence
Sentiment classification	text sequence	integer rating from one to five
DNA sequence analysis	DNA sequence corresponds to a protein	DNA Labels
Machine translation	text sequence (in one language)	text sequence (in other language)
Video activity recognition	video frames	label (activity)
Name entity recognition	text sequence	label sequence

Notation

We want to find people name in the sentence. This problem is called entity recognition and is used by search engine to index people mentioned in the news articles in the last 24 hours. We want the output where (this output representation is not the best one, just for ullustration) :

1 means its a name,
0 means its not a name


input	x^<1>	x^<2>	x^<3>	x^<4>	x^<5>	x^<6>	x^<7>	x^<8>	x^<9>
	Harry	Potter	and	Hermione	Granger	invented	a	new	spell
output	y^<1>	y^<2>	y^<3>	y^<4>	y^<5>	y^<6>	y^<7>	y^<8>	y^<9>
	1	1	0	1	1	0	0	0	0

Notation:

x^{</sup> is t-th word}
y^{</sup> is the output of the t-th word}
T_x is the size of the input sequence
T_y is the size of the output sequence.

We introduce the concept of i-th example :

x^(i)<t> is t-th word of the i-th input example,
T^x(i) is the length of the i-th example.

Representing words: we build a dictionary that is a vocabulary list that contains all the words in our training sets
Vocabulary sizes in modern applications are from 30,000 to 50,000. 100,000 is not uncommon. Some of the bigger companies use even a million.
We use one-Hot representation for a specific word : vector with 1 in position of the word in the dictionary and 0 everywhere else
We add a token in the vocabulary with name <UNK> (unknown text)

Recurrent Neural Network Model

Why not to use a standard network ?

Inputs, outputs can be different lengths in different examples
Neural network architecture doesn’t share features learned across different positions of text (“Harry Potter” is a name even if found in another part, at a different position in the text)

Let’s build a recurrent neural network

The first word you will read x<1> feed a neural network layer to predict y<1>
The second word x<2> feed the same neural network layer, but instead of just predicting y<2> using only x<2>, it also gets a<1> computed in step 1
a<0> is usually initialized with zeros (may be initialized randomly)

There are 2 representation :

on the left side, each step are represented
on the right side, we have a concentrated notation with only one layer represented

RNN vs, BRNN

In RNN, we used earlier values in the sequence, so y<3> is predicted with x<3>, but also with x<1> and x<2> that come with the pass through connection (via a<2>)
In BRNN (Bidirectional RNN), we also use inofrmation from x<4>, x<5>
That means that with RNN, the sentence “He sad : Teddy…” we cannot be sure that “Teddy” is part of a person name

So in summary, we define the following forward propagation. We define 3 vectors parameters :

Parameters	Input	Output	comment
Wax	x<1>	a<1>	parameters are the same for each step with input x<1>, x<2>, etc.
Waa	a<0>	a<1>	parameters are the same for each step with input a<1>, a<2>, etc.
Wya	a<0>	y<1>	parameters are the same for each step with input a<1>, a<2>, etc.

Note that :

the activation function of a is usually tanh or ReLU
the activation function for y depends on your task (sigmoid and softmax). In name entity recognition task we will use sigmoid because we only have two classes.

We can simplify the notation by defining Wa as the horizontal compression of Waa and Wax

	Waa	Wax	Wa
Nb row	100	100	100
Nb Columns	100	10’000	10’100

Backpropagation Through Time

As usual, when you implement this in one of the programming frameworks, often, the programming framework will automatically take care of backpropagation. But I think it’s still useful to have a rough sense of how backprop works in RNNs.

In backprop, as you might already have guessed, you end up carrying backpropagation calculations in basically the opposite direction of the forward prop arrows

Computational graph for forward propagation is in green,
We use standard logistic regression loss, also called cross-entropy loss function
back propagation is in red
these graphes allow you to compute all the appropriate quantities (derivatives, parameters, ) - finally apply gradient descent

In the backpropagation procedure the most significant recursive calculation is the chain a, ..., a<2>, a<1> which goes from right to left. The backpropagation here is called backpropagation **through time** because we pass activation a from one sequence element to another like backwards in time. That phrase really makes it sound like you need a time machine to implement this output, but I just thought that backprop through time is just one of the coolest names for an algorithm.

Different Types of RNNs

So far we have seen only one RNN architecture in which Tx equals TY. In some other problems, they may not equal so we need different architectures.

This video is inspired by Andrej Karpathy blog, The Unreasonable Effectiveness of Recurrent Neural Networks. http://karpathy.github.io/2015/05/21/rnn-effectiveness/

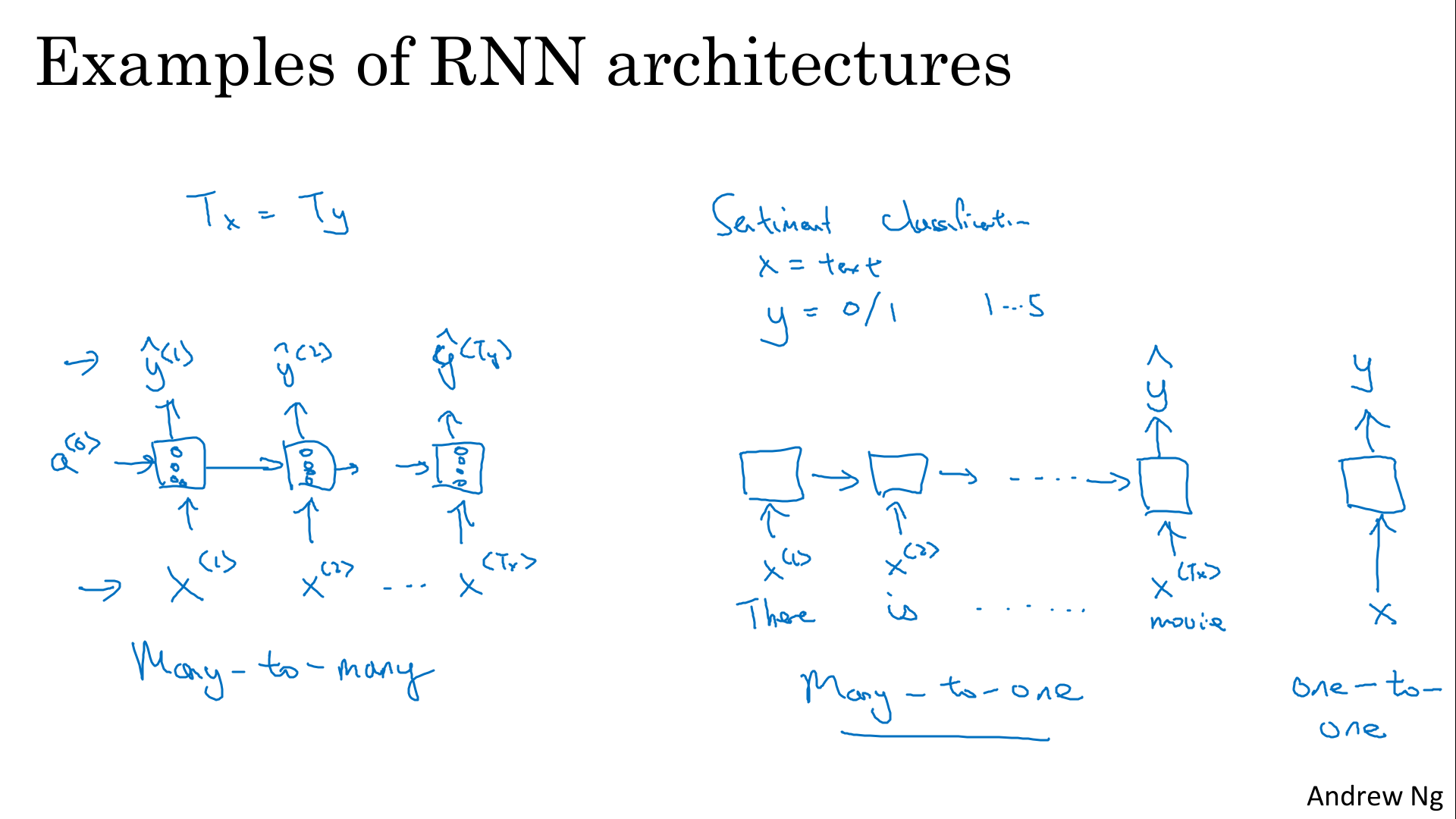

Use case	input	output	architecture type
entity recognition, Tx=Ty, described before	text	booleans	Many to Many
sentiment clasification	text	integer (1 to 5)	Many to One
standard NN			One to One

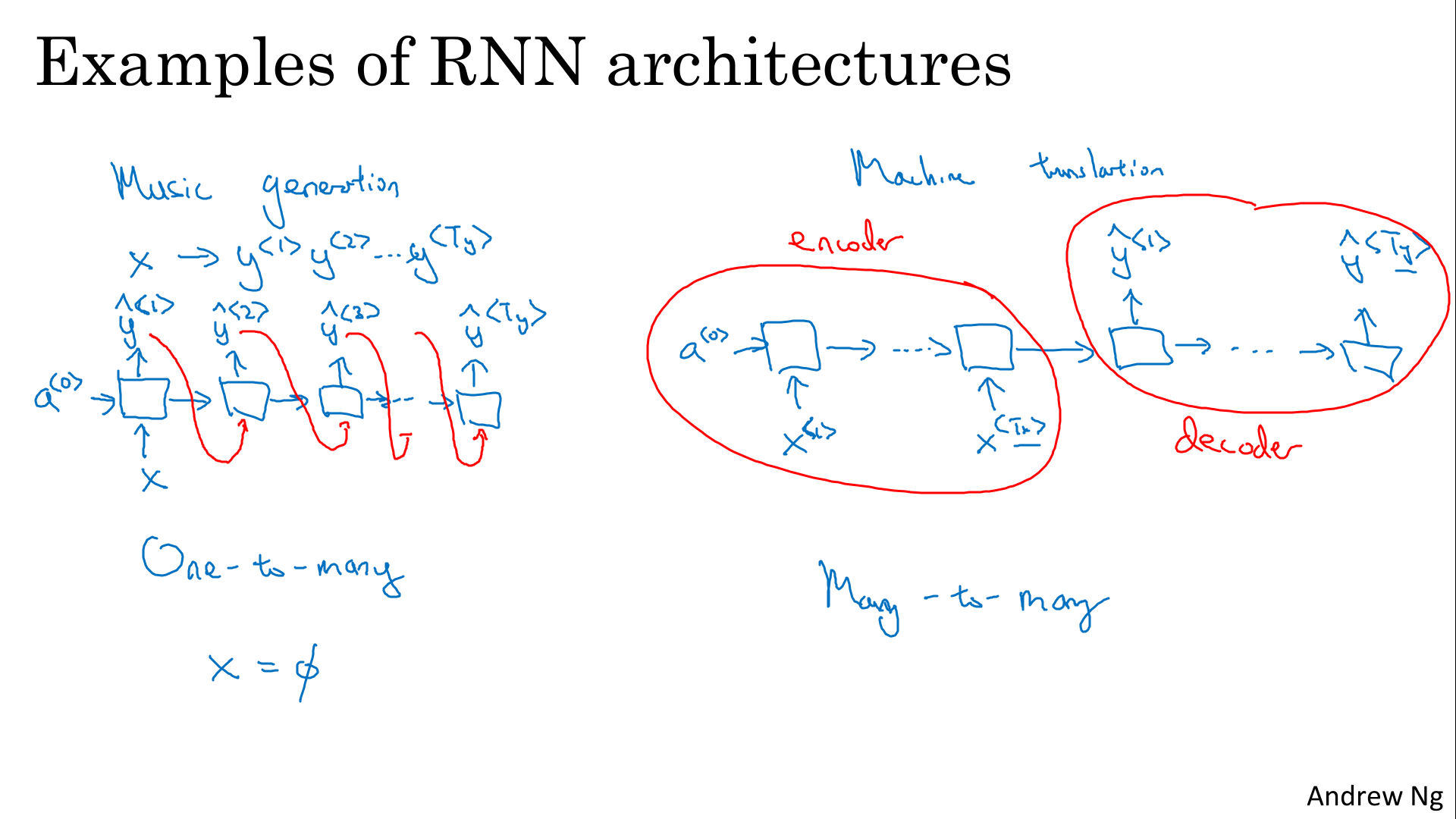

Use case	input	output	architecture type
music generation	integer (genre of music)	set of notes (music)	One to Many
Machine translation, Tx<!=Ty	English text	French text	Many to Many

Technically, there’s one other architecture which we’ll talk about only in week four, which is attention based architectures.

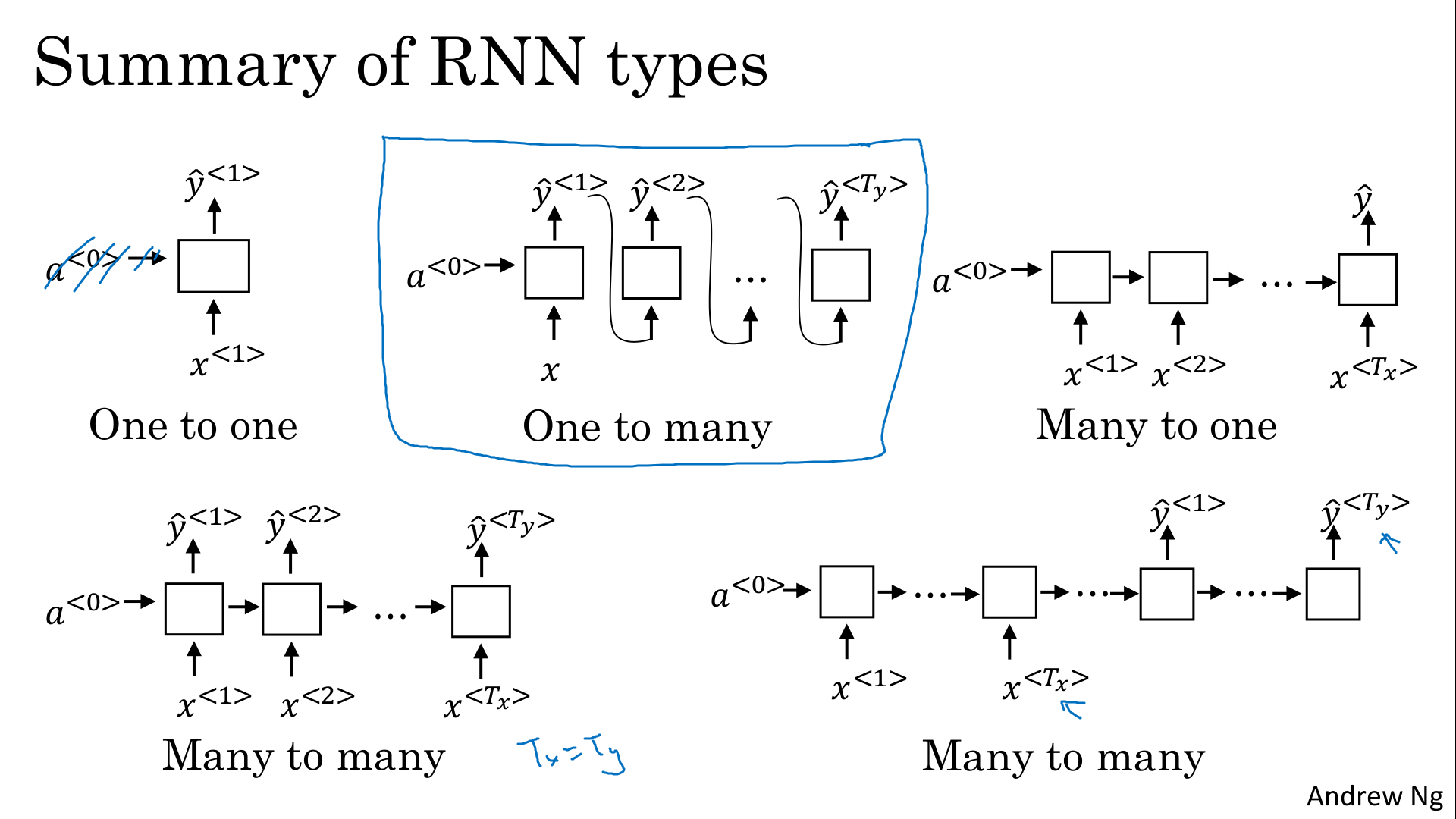

To summarize:

Language Model and Sequence Generation

Let’s say we want the speech recognition want to predict if a sentence is :

The apple and pair salad
The apple and pear salad The way a speech recognition system picks the second sentence is by using a language model which tells it what is the probability of either of these two sentences.

What a language model does is, given any sentence 𝑃(y<1>, y<2>, ..., y<T_y>), its job is to tell you what is the probability of that particular sentence

This is a fundamental component for both :

speech recognition systems
machine translation systems

How do you build a language model using a RNN, you need

Get a training set comprising a large corpus of English text. The word corpus is an NLP terminology that just means a large body or a very large set of English sentences
Then tokenize this training set
- form a vocabulary
- map each of the word to a one-hot vector
- add an extra token <EOS> (End Of Sentence)
- add an extra token <UNK> (UNKnown) when word not found in vocabulary

Note that when doing the tokenization step, you can decide whether or not the period should be a token as well (a period . is a form of punctuation used to end a declarative sentence)

The probability is computed with : 𝑃(y<1>, y<2>, ..., y<Ty>) = 𝑃(y<1>) * 𝑃(y<1>) ... * 𝑃(y<Ty>)

Given the sentence Cats average 15 hours of sleep a day <EOS> (9 words).

Output	Input	Probability	applied to
$\hat{y}^{<1>}$	x<1>=0	Probability to have ‘Cats’ as the first word. This is a 10.002 Softmax output (10,000 words vocabulary + EOS + UNK	`P(Cats)`
$\hat{y}^{<2>}$	x<2>=y<1>=Cats	Probability of having a word given previously “Cats”	`P(average \\| Cats)`
$\hat{y}^{<3>}$	x<3>=y<2>=average	Probability of having a word given previously “Cats average”	`P(15 \\| Cats average)`

With then define the cost function with the Softmax loss function

If you train this RNN on a large training set, what it will be able to do is :

given any initial set of words such as cats average 15 or cats average 15 hours of, it can predict what is the chance of the next word
Given a new sentence y<1>,y<2>,y<3>, you can calculate the probability of the sentence p(y<1>,y<2>,y<3>) = p(y<1>) * p(y<2>|y<1>) * p(y<3>|y<1>,y<2>)

Sampling Novel Sequences

After you train a sequence model, one of the ways you can informally get a sense of what is learned is to have a sample novel sequences.

First time step
- we first pass a<0> = x<1> = 0 vector
- we randomly generate a sample according to the softmax distribution $\hat{y}^{<1>}$ using the numpy command np.random.choice
- we get for example the word the
Second step
- the second time step is expecting y<1> as input, we use ŷ<1> (the word the) that you just sampled in the first step as the input to the second timestep
- we get the probability of getting a specific word knowing the first word the
- we use the probability with the numpy command np.random.choice to generate the second word…
until you get <EOS>

Note that :

Note that 𝑦̂⟨t+1⟩ is a (softmax) probability vector (its entries are between 0 and 1 and sum to 1).
𝑦̂⟨t+1⟩ represents the probability that the character indexed by “i” is the next character.
if you select the most probable word, the model will always generate the same result given a starting word. To make the results more interesting, we use np.random.choice to select a next letter that is likely, but not always the same.

So far we have to build a word-level language model but we can also build a character-level language model.

In the character-level language model, the vocabulary will contain [a-zA-Z0-9], punctuation, special characters…

Advantages:

You don’t have to worry about <UNK>.

Disadvantages:

much longer sequences.
not as good as word level language models at capturing long range dependencies with the earlier parts of the sentence
More computationally expensive to train

The trend in natural language processing is that for the most part, word level language model are still used, but as computers gets faster there are more and more applications where people are, at least in some special cases, starting to look at more character level models

Fun examples:

Vanishing Gradients with RNNs

Vanishing

The problems of the basic RNN algorithm is that it runs into vanishing gradient problems.

Language can have very long-term dependencies:

The cat, which already ate a bunch of food that was delicious …, was full.
The cats, which already ate a bunch of food that was delicious, and apples, and pears, …, were full.

It turns out that the basic RNN we’ve seen so far is not very good at capturing very long-term dependencies.

We’ve seen the vanishing gradient for standard neuronal network. For very deep neural network (100 years or even much deeper), you would carry out forward prop from left to right and then backprop. The gradient from the output has a very hard time propagating back to affect the weights the computations of the earlier layers.

In the context of a recurrent neural network (RNN), there is a problem that is similar. The forward propagation goes from left to right, and the backpropagation goes from right to left.

However, this can be challenging because the error associated with the later time steps ŷ<Ty> may not have a significant impact on the computations from earlier time steps. It’s very difficult for the error to backpropagate all the way to the beginning of the sequence, and therefore to modify how the neural network is doing computations earlier in the sequence.

In other words, it can be difficult for the neural network to recognize the need to remember certain information. In practice, it may be challenging to train a neural network to effectively memorize information over time. Because of this vanishing problem, the basic RNN model :

has many local influences, meaning that the output is mainly influenced by values close to it
it’s difficult for the output to be strongly influenced by an input that was very early in the sequence.

Exploding

Vanishing gradients tends to be the biggest problem with training RNNs. Although when exploding gradients happens it can be catastrophic because the exponentially large gradients can cause your parameters to become so large that your neural network parameters get really messed up. You might often see NaNs (not a number), meaning results of a numerical overflow in your neural network computation

One of the ways solve exploding gradient is to apply gradient clipping means if your gradient is more than some threshold - re-scale some of your gradient vector so that is not too big.

Gated Recurrent Unit (GRU)

This is a visualization of the RNN unit of the hidden layer of the RNN that will be used to explain the GRU or the gated recurrent unit.

GRU unit has a new variable c the memory cell that provides a bit of memory (for example, whether cat was singular or plural)
in GTU, c<t> = a<t>, but c introduced for LSTM
c̃<t> is a candidate for replacing the memory cell c<t>
The key idea of the GRU is to have a update gate Γu
- Γu is a sigmoid function is either very close to 0 or very close to 1
- if Γu ≈ 0, c<t> = c<t-1>, so we keep the previous value
- if Γu ≈ 1, c<t> = c̃<t>, we take the candidate as the new value to memorized

t	0	1	2	3	…	t1	…
Word	The	cat	which	already	…	was	full
Γu	0	1	0	0	0	1	…
`c<t>`		`c<1>=c̃<1>`	`c̃<1>`	`c̃<1>`	`c̃<1>`	`c<t1>=c̃<t1>`

If you have 100 dimensional or hidden activation value, then c<t>, c̃<t>, Γu would be the same dimension

If Γu is 100 dimensional vector, then it is really a 100 dimensional vector of bits, the value is mostly zero and one
So Γu tells you of this 100 dimensional memory cell which are the bits you want to update
- one bit could be use to keep in memory singular or plural (cat vs cats)
- another bit could be use to keep in memory that you are talking about food (ate)
In practice Γu won’t be exactly zero or one

Full GRU unit, we introduce Γt, this gate tells you how relevant is c<t-1> to computing the next candidate for c<t>

Why not use a simpler version from the previous slides? It turns out that over many years, researchers have experimented with many different possible versions of how to design these units to try to have longer range connections. To try to have model long-range effects and also address vanishing gradient problems. The GRU is one of the most commonly used versions that researchers have converged to and then found as robust and useful for many different problems.

The other common version is called an LSTM, which stands for Long, Short-term Memory, which we’ll talk about in the next video. But GRUs and LSTMs are two specific instantiations of this set of ideas that are most commonly used.

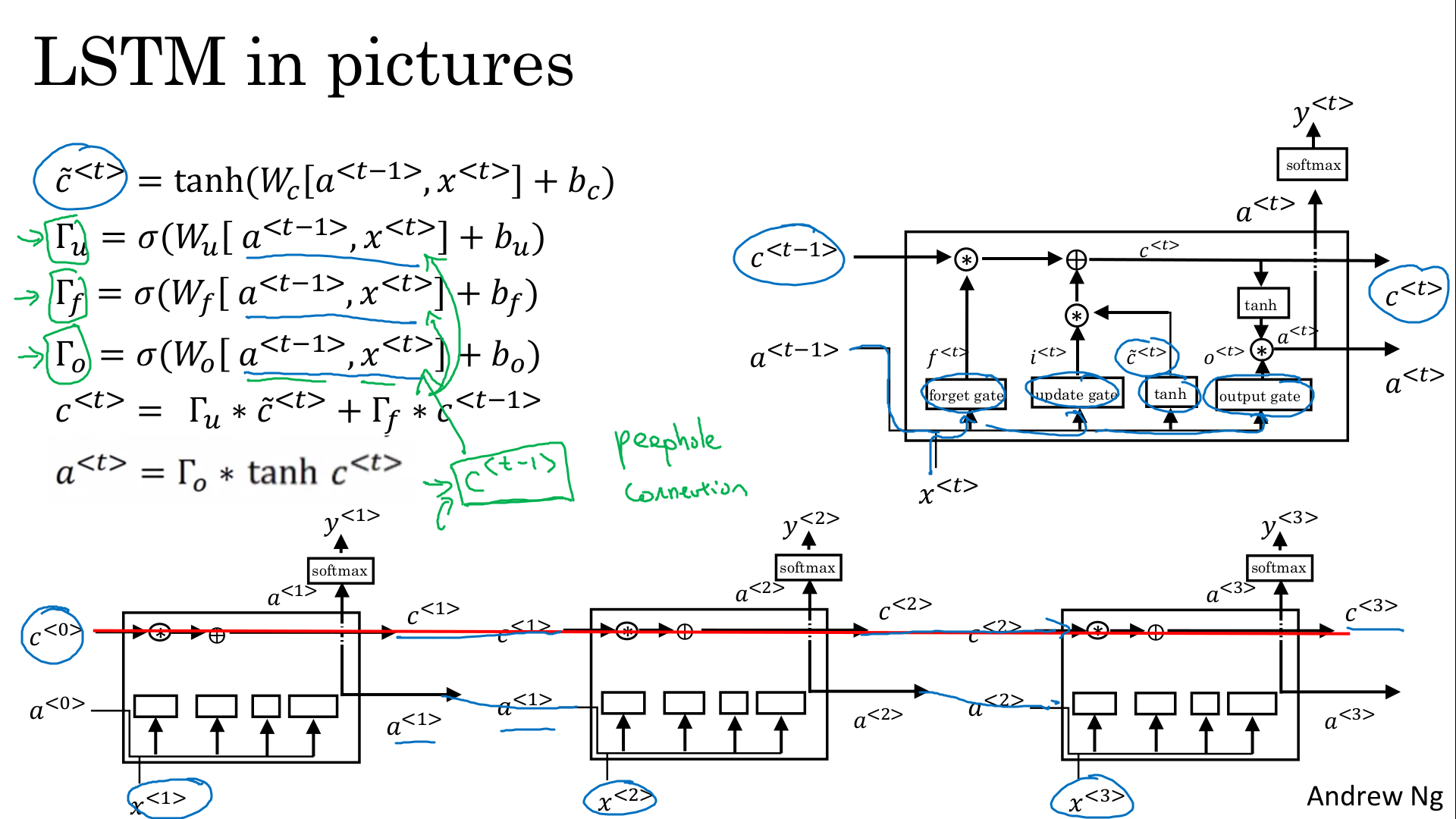

Long Short Term Memory (LSTM)

In the last video, you learn about the GRU, the Gated Recurring Unit and how that can allow you to learn very long range connections in a sequence.

The other type of unit that allows you to do this very well is the LSTM or the long short term memory units. And this is even more powerful than the GRU

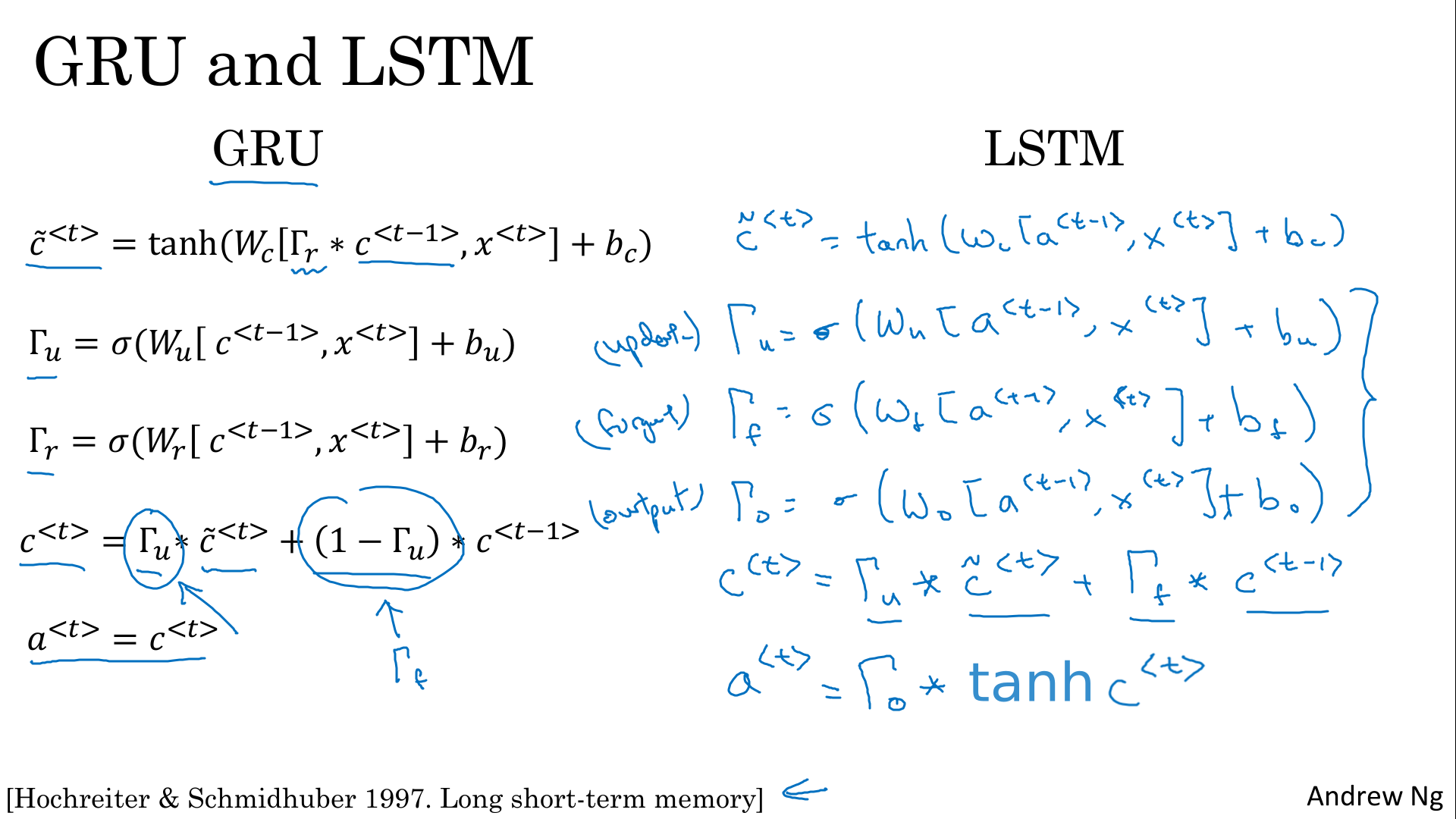

Compared to GRU, with LSTM :

c̃<t> is no more computed from c<t-1> neither from Γr but from a<t-1>
We’re not using relevance gate Γr, but instead :
- update gate, Γu
- forget gate, Γf that is decoraalated from Γu (GRU, we used 1 - Γu)
- and output gates, Γo

The red line at the top shows how, so long as you set appropriately the forget gate Γf and the update gates Γu, it is relatively easy for the LSTM to pass ome value C0 be all the way to and used it maybe to assign C3 = C0. And this is why the LSTM (as well as the GRU) is very good at memorizing certain values even for a long time.

One common variation of LSTM, you had peephole connection. Instead of just having the gate values be dependent only on a<t-1>, x<t>, sometimes people replace x<t> with c<t-1>.

GRU vs. LSTM :

LSTMs actually came much earlier and then GRUs were relatively recent invention that were maybe derived as partly a simplification of the more complicated LSTM model
GRU is a simpler model and so it is actually easier to build a much bigger network
LSTM is more powerful and more effective since it has 3 gates instead of 2
people today will still use the LSTM as the default first thing to try

Bidirectional RNN

In the example of the Name entity recognition task, with RNN (GRU, LSTM, …) the name Teddy cannot be learned from He said, but can be learned from bears. BRNNs fixes this issue.

BRNN learns from both sides.
Forward propagation we are not talking about backward propagation) has 2 parts :
- a part goes from left to right (blue arrows)
- a part goes from right to left (green arrows)
The blocks here can be any RNN block (RNNs, LSTMs, or GRUs)

Example of computation of ŷ<3> (yellow arrows) :

information from the past x<1>, x<2> from left to right
information from the present x<3>
information from future x<4>from right to left

The disadvantage of BRNNs is that you need the entire sequence before you can process it: in live speech recognition, you will need to wait for the person to stop talking to take the entire sequence and then make your predictions. So the real time speech recognition applications, there is somewhat more complex models than just using the standard RNN

Deep RNNs

In some problems its useful to stack some RNN layers to make a deeper network
a[l]<t> for layer l and sequence t
How deep :
- for neural networks you may have 100 layers. For RNNs, having three layers is already quite a lot (because you also have the temporal dimension that can be big)
- you can see more deep layer, but layer with l > 3 are not connected horizontally
The blocks can be standard RNN, GRU blocks or LSTM blocks.
You can implement bidirectionnal RNN
