Neural networks Basics
Set up a machine learning problem with a neural network mindset and use vectorization to speed up your models.
Learning Objectives
- Build a logistic regression model structured as a shallow neural network
- Build the general architecture of a learning algorithm, including parameter initialization, cost function and gradient calculation, and optimization implemetation (gradient descent) Implement computationally efficient and highly vectorized versions of models
- Compute derivatives for logistic regression, using a backpropagation mindset
- Use Numpy functions and Numpy matrix/vector operations
- Work with iPython Notebooks
- Implement vectorization across multiple training examples
- Explain the concept of broadcasting
Table of contents
Logistic Regression as a Neural Network
Binary Classification
Logistic regression is an algorithm for binary classification. Here’s an example of a binary classification problem : image contains a cat (output = 1) or not (output = 0), with an image of 64 pixels x 64 pixels
- A single training example is represented by a pair, (x,y) where
- x is an $n_x$-dimensional feature vector
- y, the label, is either 0 or 1
- Training example is $(x^{(1)}, y^{(1)}), (x^{(2)}, y^{(2)}), … (x^{(m)}, y^{(m)})$
- $m$ or $m_{train}$ the number of train examples
- $m_{test}$ the number of test examples
Finally, to output all of the training examples into a more compact notation, we’re going to define a matrix, X with :
- $m$ columns (number of train examples)
- $n_x$ rows, where $n_x$ is the dimemsion of the input feature x
In python $Y.shape=(n_x,m)$
Notice that in other causes, you might see the matrix capital X defined by stacking up the train examples in rows, X1 transpose down to Xm transpose. Implementing neural networks using this first convention makes the implementation much easier.
Concenring label we also use matrix notation. The dimension of the matrix is (1 x m), in python $Y.shape = (1,m)$
Logistic Regression
$\hat{y}$ (y hat) is the prediction of y, is the probability of of y=1, given the input x
With w ($n_x$ dimension vector) and b (real number) as parameter, $\hat{y} = w^T.x + b$, with $w^T$ the w transpose (column instead of line for matrix multiplication compataibility)
This is linear regression, that is not correct for binary classification (0 < y < 1). That’s why we use the sigmoid function
When we programmed neural networks, we’ll usually keep the parameter W and parameter B separate, but there is another convention in which you merge w and b, introducing an extra feature $x_0=1$
Logistic Regression Cost Function
Logitic regression model
With loss function or error function we can use to measure how well algorithm is performant. The following square error function doesn’t fit for logistic regression, because it’s not convex
That’s why we introduce the following loss function, called cross entropy
Loss function is defined to a single train example. Cost function is for the whole set of training example
Gradient Descent
https://github.com/mauvaisetroupe/machine-learning-specialization-coursera/blob/main/c1-supervised-ML-regression-and-classification/week1/README.md#gradient-descent
Inthe code, by convention we use dw and db
Derivatives
More Derivative Examples
Computation Graph
https://github.com/mauvaisetroupe/machine-learning-specialization-coursera/blob/c1e3ee9a248c4dfa2c129fc1d5bd7d5b64b71f78/c2-advanced-learning-algorithms/week2/README.md#computation-graph-optional
Derivatives with a Computation Graph
https://github.com/mauvaisetroupe/machine-learning-specialization-coursera/blob/c1e3ee9a248c4dfa2c129fc1d5bd7d5b64b71f78/c2-advanced-learning-algorithms/week2/README.md#computation-graph-optional
Python convention, dJ/da is denoted da, dJ/dv is denoted dv
In summary :
Logistic Regression Gradient Descent
This demo don’t use backward propagation (adding a epsilon and check how much computed value increase), but use calculus derivatives, especially chain derivative rules.
We calculate the partial derivatives and apply chain derivatives rules
$dz = a - y$
$dw_1 = x_1 . dz, \quad dw_2 = x_2 . dz$
If we put derivatives on the computation graph (summary)
Gradient Descent on m Examples
One single step of gradient descent, with 2 loops (one for the training example, and another one for the features). This will be avoided by vectorization
Remember : $dz = a - y, \quad dw_1 = x_1 . dz, \quad dw_2 = x_2 . dz$
Python and Vectorization
Vectorization
Vectorization is basically the art of getting rid of explicit for loops in your code.
Python code
Performance result
More Vectorization Examples
Example 2 : Matrix x vector
Example 2 : apply operation (exponential, log, …) on every element of this vector v
Vectorizing Logistic Regression
Vectorizing Logistic Regression’s Gradient Output
To implement multiple iterations as a gradient descent, we still need a for loop over the number of iterations.
Broadcasting in Pyhton
Broadcasting is an operation of matching the dimensions of differently shaped arrays in order to be able to perform further operations on those arrays (eg per-element arithmetic).

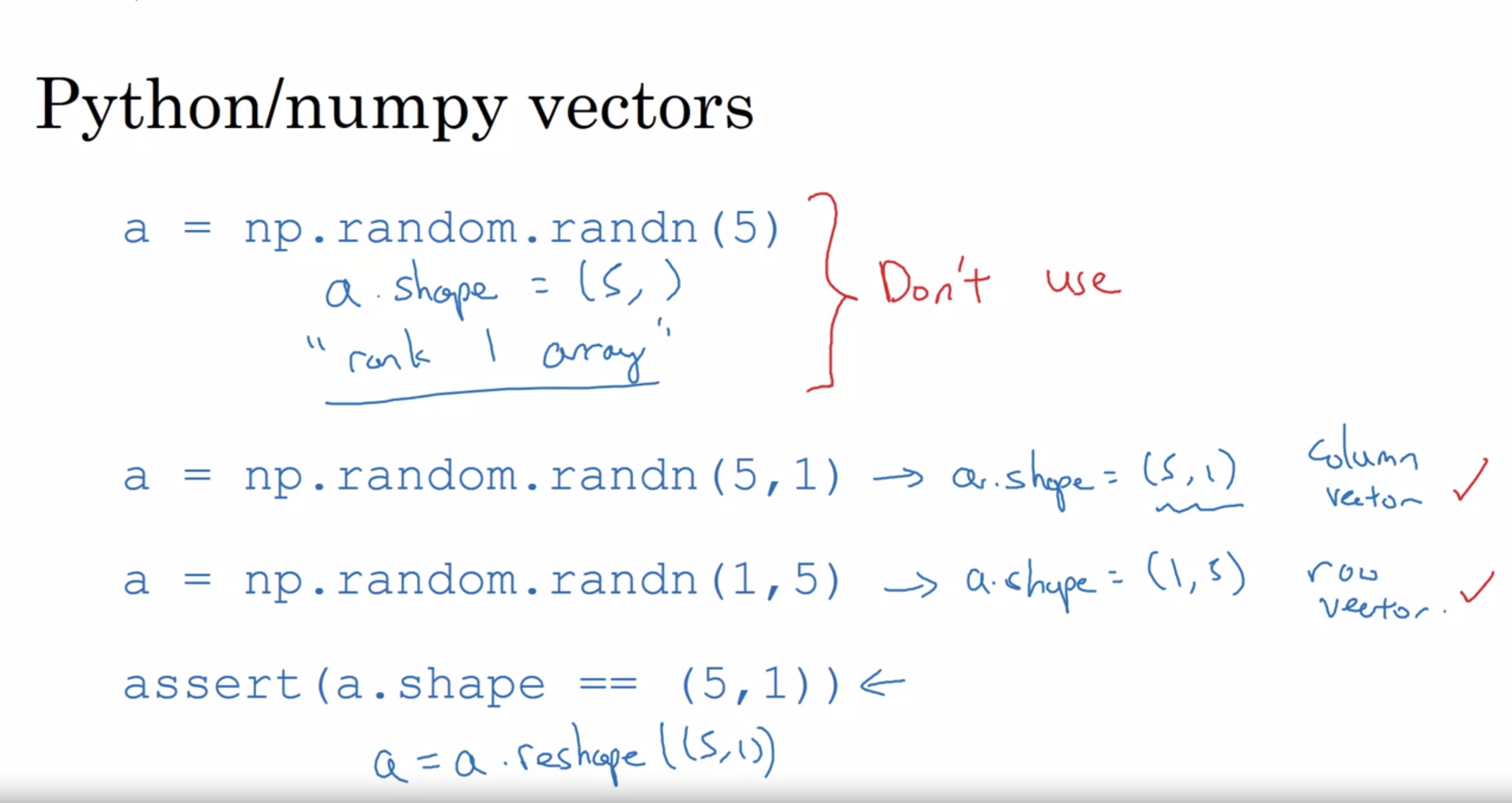

A Note on Python/Numpy Vectors
- it’s a strength because they create expressivity of the language. A great flexibility of the language lets you get a lot done even with just a single line of code. The ability of python to allow you to use broadcasting operations and more generally, the great flexibility of the python numpy program language is, both a strength as well as a weakness of the programming language:
- cut also a weakness because broadcasting and flexibility, sometimes can introduce very subtle bugs.
Explanation of Logistic Regression Cost Function (Optional)
log(p(y|x))= - Loss Function- Minimizing the loss corresponds with maximizing
log(p(y|x))
